Designing a Report Interface using SALV/IDA

SALV (easy to implement if we do not need CDS views) , IDA (optimized for HANA), ALV Classic ( editable; simple, hierarchy ).

Decide on the source
Decide on the look

ALV splitter

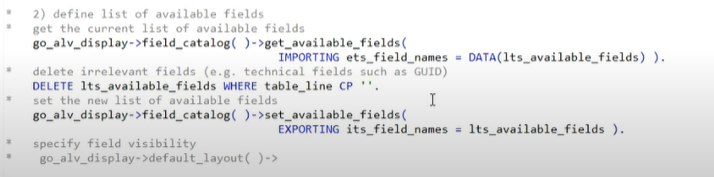

List fields

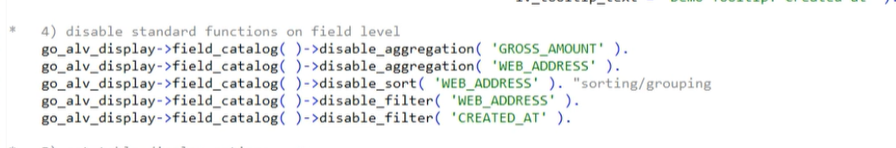

List functions

Variant
Layout
Format ( colors )
Field descriptions
Sorting
Filtering
Status with own buttons
Editabale fields

Events

hotspot on field
double click

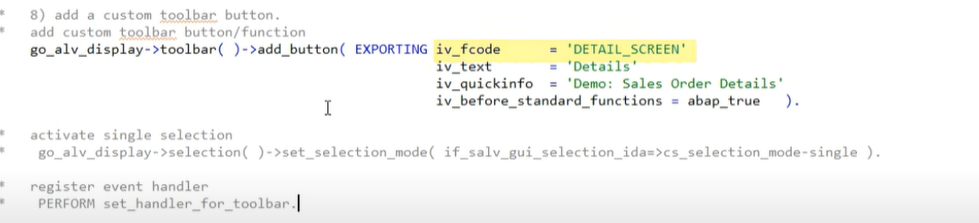

Toolbar with own buttons

SALV functions

Simple 2D table display

CL_SALV_TABLE

Hierarchical ALV display

CL_SALV_HIERSEQU_TABLE

Tree ALV using class

CL_SALV_TREE

Normal ALV Table Display

ALV reference

DATA: lo_alv TYPE REF TO cl_salv_table.
DATA: lx_msg TYPE REF TO cx_salv_msg.

TRY. cl_salv_table=>factory( IMPORTING r_salv_table = o_alv CHANGING t_table = t_vbak ). CATCH cx_salv_msg INTO lx_msg. ENDTRY.

lo_alv->display( ).

Adding Default PF STATUS in ALV

DATA: lo_functions TYPE REF TO cl_salv_functions_list.

lo_functions = co_alv->get_functions( ).

lo_functions->set_default( abap_true ).

Adding Custom PF STATUS in ALV

We need to create a PF status with our own buttons as well as the ALV standard buttons.

We will copy the PF-Status using of any standard SALV_DEMO report using the transaction SE41:

Menu Painter. After Copying the PF-Status we can add our own buttons.

* Calling method to set the PF-Status

lo_alv->set_screen_status(

pfstatus = 'SALV_CUSTOM'

report = 'XXXXXXXXXX'

set_functions = lo_alv->c_functions_all ).

Setting up Layout

DATA: lo_layout TYPE REF TO cl_salv_layout,

lf_variant TYPE slis_vari,

ls_key TYPE salv_s_layout_key.

lo_layout = lo_alv->get_layout( ).

ls_key-report = sy-repid.

lo_layout->set_key( ls_key ).

lo_layout->set_save_restriction( if_salv_c_layout=>restrict_none ).

lf_variant = 'DEFAULT'.

lo_layout->set_initial_layout( lf_variant ).

Add Header (Top of page) & Footer (End of Page)

DATA: lo_header TYPE REF TO cl_salv_form_layout_grid,

lo_h_label TYPE REF TO cl_salv_form_label,

lo_h_flow TYPE REF TO cl_salv_form_layout_flow.

CREATE OBJECT lo_header.

lo_h_label = lo_header->create_label( row = 1 column = 1 ).

lo_h_label->set_text( 'Header in Bold' ).

lo_h_flow = lo_header->create_flow( row = 2 column = 1 ).

lo_h_flow->create_text( text = 'This is text of flow' ).

lo_h_flow = lo_header->create_flow( row = 3 column = 1 ).

lo_h_flow->create_text( text = 'Number of Records in the output' ).

lo_h_flow = lo_header->create_flow( row = 3 column = 2 ).

lo_h_flow->create_text( text = 20 ).

Changing Column settings

DATA: lo_cols TYPE REF TO cl_salv_columns.

lo_cols = o_alv->get_columns( ).

lo_cols->set_optimize( 'X' ).

DATA: lo_column TYPE REF TO cl_salv_column.

TRY.

lo_column = lo_cols->get_column( 'KUNNR' ).

lo_column->set_long_text( 'Sold-To Party' ).

lo_column->set_medium_text( 'Sold-To Party' ).

lo_column->set_short_text( 'Sold-To' ).

lo_column->set_output_length( 10 ).

CATCH cx_salv_not_found. "#EC NO_HANDLER

ENDTRY.

Add & Handle Hotspot

Apply Colors

DATA: lo_cols_tab TYPE REF TO cl_salv_columns_table,

lo_col_tab TYPE REF TO cl_salv_column_table.

DATA: ls_color TYPE lvc_s_colo. " Colors strucutre

* get Columns object

lo_cols_tab = co_alv->get_columns( ).

INCLUDE <color>.

* Get ERDAT column & set the yellow Color fot it

TRY.

lo_col_tab ?= lo_cols_tab->get_column( 'ERDAT' ).

ls_color-col = col_total.

lo_col_tab->set_color( ls_color ).

CATCH cx_salv_not_found.

ENDTRY.

*.......Color for Specific Cell & Rows.................

* Applying color on the 3rd Row and Column AUART

* Applying color on the Entire 5th Row

DATA: lt_s_color TYPE lvc_t_scol,

ls_s_color TYPE lvc_s_scol,

la_vbak LIKE LINE OF ct_vbak,

l_count TYPE i.

LOOP AT ct_vbak INTO la_vbak.

l_count = l_count + 1.

CASE l_count.

* Apply RED color to the AUART Cell of the 3rd Row

WHEN 3.

ls_s_color-fname = 'AUART'.

ls_s_color-color-col = col_negative.

ls_s_color-color-int = 0.

ls_s_color-color-inv = 0.

APPEND ls_s_color TO lt_s_color.

CLEAR ls_s_color.

* Apply GREEN color to the entire row # 5

* For entire row, we don't pass the Fieldname

WHEN 5.

ls_s_color-color-col = col_positive.

ls_s_color-color-int = 0.

ls_s_color-color-inv = 0.

APPEND ls_s_color TO lt_s_color.

CLEAR ls_s_color.

ENDCASE.

* Modify that data back to the output table

la_vbak-t_color = lt_s_color.

MODIFY ct_vbak FROM la_vbak.

CLEAR la_vbak.

CLEAR lt_s_color.

ENDLOOP.

* We will set this COLOR table field name of the internal table to

* COLUMNS tab reference for the specific colors

TRY.

lo_cols_tab->set_color_column( 'T_COLOR' ).

CATCH cx_salv_data_error. "#EC NO_HANDLER

ENDTRY.

Apply Aggregations

DATA: lo_aggrs TYPE REF TO cl_salv_aggregations.

lo_aggrs = co_alv->get_aggregations( ).

* Add TOTAL for COLUMN NETWR

TRY.

CALL METHOD lo_aggrs->add_aggregation

EXPORTING

columnname = 'NETWR'

aggregation = if_salv_c_aggregation=>total.

CATCH cx_salv_data_error . "#EC NO_HANDLER

CATCH cx_salv_not_found . "#EC NO_HANDLER

CATCH cx_salv_existing . "#EC NO_HANDLER

ENDTRY.

* Bring the total line to top

lo_aggrs->set_aggregation_before_items( ).

Apply Filters

DATA: lo_filters TYPE REF TO cl_salv_filters.

lo_filters = co_alv->get_filters( ).

* Set the filter for the column ERDAT

* the filter criteria works exactly same as any

* RANGE or SELECT-OPTIONS works.

TRY.

CALL METHOD lo_filters->add_filter

EXPORTING

columnname = 'ERDAT'

sign = 'I'

option = 'EQ'

low = '20091214'

* high =

CATCH cx_salv_not_found . "#EC NO_HANDLER

CATCH cx_salv_data_error . "#EC NO_HANDLER

CATCH cx_salv_existing . "#EC NO_HANDLER

ENDTRY.

Apply Styles to Cell

*...Get all the Columns

DATA: lo_cols TYPE REF TO cl_salv_columns_table.

lo_cols = o_alv->get_columns( ).

* set the Column optimization

lo_cols->set_optimize( 'X' ).

* Set the Cell Type

TRY.

lo_cols->set_cell_type_column( 'I_CELLTYPE' ).

CATCH cx_salv_data_error. "#EC NO_HANDLER

ENDTRY. "

Apply sorts

DATA: lo_sort TYPE REF TO cl_salv_sorts.

* get Sort object

lo_sort = co_alv->get_sorts( ).

* Set the SORT on the AUART with Subtotal

TRY.

CALL METHOD lo_sort->add_sort

EXPORTING

columnname = 'AUART'

subtotal = if_salv_c_bool_sap=>true.

CATCH cx_salv_not_found . "#EC NO_HANDLER

CATCH cx_salv_existing . "#EC NO_HANDLER

CATCH cx_salv_data_error . "#EC NO_HANDLER

ENDTRY.

ENDMETHOD. "set_sorts

METHOD set_aggregations.

DATA: lo_aggrs TYPE REF TO cl_salv_aggregations.

lo_aggrs = co_alv->get_aggregations( ).

* Add TOTAL for COLUMN NETWR

TRY.

CALL METHOD lo_aggrs->add_aggregation

EXPORTING

columnname = 'NETWR'

aggregation = if_salv_c_aggregation=>total.

CATCH cx_salv_data_error . "#EC NO_HANDLER

CATCH cx_salv_not_found . "#EC NO_HANDLER

CATCH cx_salv_existing .

ICONs and Tooltips

DATA: lo_tooltips TYPE REF TO cl_salv_tooltips,

lv_value TYPE lvc_value.

*...Tooltips

lo_functional_settings = o_salv->get_functional_settings( ).

lo_tooltips = lo_functional_settings->get_tooltips( ).

TRY.

lv_value = icon_green_light.

lo_tooltips->add_tooltip(

TYPE = cl_salv_tooltip=>c_type_icon

VALUE = lv_value

tooltip = 'Everything is Processed' ). "#EC NOTEXT

CATCH cx_salv_existing. "#EC NO_HANDLER

ENDTRY.

TRY.

lv_value = icon_yellow_light.

lo_tooltips->add_tooltip(

TYPE = cl_salv_tooltip=>c_type_icon

VALUE = lv_value

tooltip = 'Partially processed' ). "#EC NOTEXT

CATCH cx_salv_existing. "#EC NO_HANDLER

ENDTRY.

TRY.

lv_value = icon_red_light.

lo_tooltips->add_tooltip(

TYPE = cl_salv_tooltip=>c_type_icon

VALUE = lv_value

tooltip = 'Nothing Yet processed' ). "#EC NOTEXT

CATCH cx_salv_existing. "#EC NO_HANDLER

ENDTRY.

Columns Specific Grouping

*----

* create the Groups

*----

DATA: lo_functional_settings TYPE REF TO cl_salv_functional_settings,

lo_specific_groups TYPE REF TO cl_salv_specific_groups,

lv_text TYPE cl_salv_specific_groups=>y_text.

lo_functional_settings = o_salv->get_functional_settings( ).

lo_specific_groups = lo_functional_settings->get_specific_groups( ).

* Group for column which start with HSL, as group ID GRP1

TRY.

lv_text = 'HSL Amounts'.

lo_specific_groups->add_specific_group( ID = 'GRP1'

text = lv_text ).

CATCH cx_salv_existing. "#EC NO_HANDLER

ENDTRY.

* Group for column which start with TSL, as group ID GRP2

TRY.

lv_text = 'TSL Amounts'.

lo_specific_groups->add_specific_group( ID = 'GRP2'

text = lv_text ).

CATCH cx_salv_existing. "#EC NO_HANDLER

ENDTRY.

*----

* Assign the group to columns

*----

DATA: lo_columns TYPE REF TO cl_salv_columns_table,

lo_column TYPE REF TO cl_salv_column_list,

lt_cols TYPE salv_t_column_ref,

ls_cols LIKE LINE OF lt_cols.

lo_columns = o_salv->get_columns( ).

lt_cols = lo_columns->get( ).

TRY.

lo_column ?= lo_columns->get_column( 'MANDT' ).

lo_column->set_technical( if_salv_c_bool_sap=>true ).

CATCH cx_salv_not_found. "#EC NO_HANDLER

ENDTRY.

LOOP AT lt_cols INTO ls_cols.

lo_column ?= ls_cols-r_column. "Narrow casting

CASE ls_cols-columnname+0(3).

" GRP1 to HSL columns

WHEN 'HSL'.

lo_column->set_specific_group( ID = 'GRP1' ).

lo_column->set_visible( " ).

" GRP2 to TSL columns

WHEN 'TSL'.

lo_column->set_specific_group( ID = 'GRP2' ).

lo_column->set_visible( " ).

ENDCASE.

ENDLOOP.

ENDMETHOD. "set_column_specific_group

SALV Hierarchical Table

Simple table display

DATA: lx_data_err TYPE REF TO cx_salv_data_error,

lx_not_found TYPE REF TO cx_salv_not_found.

DATA: lt_bind TYPE salv_t_hierseq_binding,

la_bind LIKE LINE OF lt_bind.

la_bind-master = 'VBELN'.

la_bind-slave = 'VBELN'.

APPEND la_bind TO lt_bind.

TRY.

CALL METHOD cl_salv_hierseq_table=>factory

EXPORTING

t_binding_level1_level2 = lt_bind

IMPORTING

r_hierseq = o_hs_alv

CHANGING

t_table_level1 = t_vbak

t_table_level2 = t_vbap.

CATCH cx_salv_data_error INTO lx_data_err.

CATCH cx_salv_not_found INTO lx_not_found.

ENDTRY.

o_hs_alv->display( )

Adding Default PF Status

DATA: lo_functions TYPE REF TO cl_salv_functions_list.

lo_functions = lo_hs_alv->get_functions( ).

lo_functions->set_all( abap_true ).

Add Expand/Collapse Option

DATA:

lo_columns TYPE REF TO cl_salv_columns_hierseq.

* Get the Columns of the Master

TRY.

lo_columns = co_hs_alv->get_columns( 1 ).

CATCH cx_salv_not_found.

ENDTRY.

* set expand column

TRY.

lo_columns->set_expand_column( 'EXPAND' ).

CATCH cx_salv_data_error. "#EC NO_HANDLER

ENDTRY.

DATA: lo_level TYPE REF TO cl_salv_hierseq_level.

* Set items expanded by default

TRY.

lo_level = co_hs_alv->get_level( 1 ).

lo_level->set_items_expanded( ).

CATCH cx_salv_not_found.

ENDTRY.

IDA

Tables

Example#1: Display Sales Order Details (table)

Check DB Capabilities
CHECK cl_salv_gui_table_ida=>db_capabilities( )->is_table_supported( iv_ddic_table_name = ‘VBAK’).

Create IDA
DATA(o_ida) = cl_salv_gui_table_ida=>create( iv_table_name = ‘VBAK’ ).

or: cl_salv_gui_table_ida=>create_for_cds_view(`Z_Invoice_Items`)->fullscreen( )->display( ).

Set Maximum Rows Recommended
IF cl_salv_gui_table_ida=>db_capabilities( )->is_max_rows_recommended( ).
o_ida->set_maximum_number_of_rows( iv_number_of_rows = 2000 ).
ENDIF.

Display
o_ida->fullscreen( )->display( ).

Example#2: Apply Filtering

data(lo_selection) = new cl_salv_range_tab_collector( ).
lo_selection->add_ranges_for_name( iv_name = 'MATERIAL'
it_ranges = selection->selection-bom-material ).

lo_selection->add_ranges_for_name( iv_name = 'PLANT'
it_ranges = selection->selection-bom-plant ).

lo_selection->get_collected_ranges( IMPORTING et_named_ranges = DATA(lt_named_ranges) ).

lo_ida->set_select_options( it_ranes = lt_named_ranges ).

*4... Build conditions
 lo_condition_factory = lo_alv_display->condition_factory( ).
 lo_additional_condition = lo_condition_factory->equals( name = 'CATEGORY'
                                                         value = p_prdctg ).

*5... Set select options and conditions
lo_alv_display->set_select_options( it_ranges    = lt_select_options
                                    io_condition = lo_additional_condition )

Example #3 Set the parameter

lo_ida->set_view_parameters( it_parameters = VALUE #( name = 'P_KEYDATE' value = selection->selection-bom-key_date ) )

ALV Display Setting

CDS View

Handling Large Internal Tables with CL_SALV_GUI_TABLE_IDA( integrated data access )
..more than 100,000 rows of data.

Create a CDS view

Call the function

Set additional settings

Example...

** Start of Selection.

START-OF-SELECTION.

TRY.

** Create an Object to call the CDS View name

go_alv = cl_salv_gui_table_ida=>create_for_cds_view( iv_cds_view_name = ‘ZCDS_TEST_FLIGHT’ ).

** To Add the input values to the view

DATA(go_range) = NEW cl_salv_range_tab_collector( ).

** To get the parameter value, make them as Range table

IF p_carrid IS NOT INITIAL.

gt_r_carrid = VALUE #(

( sign = ‘I’ option = ‘EQ’ low = p_carrid ) ).

** Add the parameter to the ranges.

go_range->add_ranges_for_name( EXPORTING

iv_name = ‘FLIGHT_ID’

it_ranges = gt_r_carrid ).

ENDIF.

** Add the Select Options to the ranges:

go_range->add_ranges_for_name( EXPORTING

iv_name = ‘CONN_ID’

it_ranges = so_conid[] ).

** Collect all the ranges.

go_range->get_collected_ranges( IMPORTING

et_named_ranges = DATA(gt_ranges) ).

*** Condition Factory to set the where condition.

* go_cond = go_cond_fact->equals( name = ‘FLIGHT_ID’ value = gt_r_carrid )->AND(

* go_cond_fact->equals( name = ‘CONN_ID’ value = so_conid ) ).

** Set the Ranges to IDA ALV

go_alv->set_select_options( EXPORTING

* io_condition = go_cond

it_ranges = gt_ranges ).

CATCH cx_root.

ENDTRY.

END-OF-SELECTION.

** activate full Screen Mode

DATA(go_fullscreen) = go_alv->fullscreen( ).

** Display ALV

go_fullscreen->display( ).

CL_ALV (old)

Steps to change the fieldcatalog after first display

Trigger the PAI using pushbutton or some other manner.
Now for this triggered function code get the existing fieldcatalog using the method get_frontend_fieldcatalog.
Make the required modification to the fieldcatlog.
Now in order to reflect these changes to the ALV grid make use of the method set_frontend_fieldcatalog.
Call the method refresh_table_display of class CL_GUI_ALV_GRID to refresh the ALV display so as to show the modifications done to the ALV grid.

The ALV layout can be changed in a similar manner using the get and set methods meant for layout.

Other

Pop-up ALV

  DATA: lx_alv_compare TYPE REF TO cl_salv_table,
          lx_functions   TYPE REF TO cl_salv_functions_list.

    TRY.
        cl_salv_table=>factory(
          IMPORTING
            r_salv_table = lx_alv_compare
          CHANGING
            t_table      = lt_comparison_output[] ).

      CATCH cx_salv_msg.
    ENDTRY.

    lx_functions = lx_alv_compare->get_functions( ).
    lx_functions->set_all( 'X' ).

    IF lx_alv_compare IS BOUND.

      lx_alv_compare->set_screen_popup(
         start_column = 25
         end_column  = 100
         start_line  = 6
         ).

      lx_alv_compare->display( ).

    ENDIF.
  ENDIF.

Hier SALV

Data declaration

DATA: go_hs_alv TYPE REF TO cl_salv_hierseq_table.
DATA: go_functions TYPE REF TO cl_salv_functions_list.

DATA: go_layout TYPE REF TO cl_salv_layout.
DATA: gx_data_err TYPE REF TO cx_salv_data_error,
gx_not_found TYPE REF TO cx_salv_not_found.

DATA: gt_bind TYPE salv_t_hierseq_binding,
gs_bind LIKE LINE OF gt_bind.

DATA: go_columns TYPE REF TO cl_salv_columns_hierseq,
go_column TYPE REF TO cl_salv_column_hierseq.

DATA: go_level TYPE REF TO cl_salv_hierseq_level.

DATA: gv_variant TYPE slis_vari,
gs_key TYPE salv_s_layout_key.

DATA: go_selections TYPE REF TO cl_salv_selections.

DATA: gt_columns TYPE salv_t_column.
DATA: gt_rows TYPE salv_t_row.

DATA: gs_cell TYPE salv_s_cell.

In the head

ICON 1 Types ICON_D

EXPAND 1 Types CHAR1

Display

IF gt_head IS NOT INITIAL.
    gs_bind-master = 'DOCNUM'.
    gs_bind-slave  = 'DOCNUM'.
    APPEND gs_bind TO gt_bind.

    TRY.
        CALL METHOD cl_salv_hierseq_table=>factory
          EXPORTING
            t_binding_level1_level2 = gt_bind
          IMPORTING
            r_hierseq               = go_hs_alv
          CHANGING
            t_table_level1          = gt_head
            t_table_level2          = gt_item.
      CATCH cx_salv_data_error INTO gx_data_err.
      CATCH cx_salv_not_found  INTO gx_not_found.
    ENDTRY.

    lcl_salv_formatter=>add_format_styles( CHANGING co_hs_alv = go_hs_alv ).

    go_hs_alv->display( ).

  ENDIF.

Functions

CLASS lcl_salv_formatter DEFINITION.

PUBLIC SECTION.

CLASS-METHODS: set_expand CHANGING co_hs_alv TYPE REF TO cl_salv_hierseq_table,

set_hotspots CHANGING co_hs_alv TYPE REF TO cl_salv_hierseq_table,

set_selection_rule CHANGING co_hs_alv TYPE REF TO cl_salv_hierseq_table,

set_layout CHANGING co_hs_alv TYPE REF TO cl_salv_hierseq_table,

add_format_styles CHANGING co_hs_alv TYPE REF TO cl_salv_hierseq_table,

set_events,

set_icon,

set_color CHANGING co_hs_alv TYPE REF TO cl_salv_hierseq_table,

set_status CHANGING co_hs_alv TYPE REF TO cl_salv_hierseq_table,

on_link_click FOR EVENT link_click OF cl_salv_events_hierseq IMPORTING row column level.

ENDCLASS. "lcl_salv_formatter DEFINITION

*----------------------------------------------------------------------*

* CLASS lcl_salv_formatter IMPLEMENTATION

*----------------------------------------------------------------------*

CLASS lcl_salv_formatter IMPLEMENTATION.

METHOD set_icon.

FIELD-SYMBOLS: <ls_head> LIKE LINE OF gt_head.

LOOP AT gt_head ASSIGNING <ls_head>.

CASE <ls_head>-status.

WHEN '51'.

<ls_head>-icon = icon_red_light .

WHEN '52' OR '64'.

<ls_head>-icon = icon_yellow_light.

WHEN '53' .

<ls_head>-icon = icon_green_light .

WHEN '68'.

<ls_head>-icon = icon_delete.

WHEN OTHERS.

ENDCASE.

ENDLOOP.

ENDMETHOD. "set_icon

METHOD set_color.

DATA: lo_columns TYPE REF TO cl_salv_columns_hierseq,

ls_color TYPE lvc_s_colo,

lo_level TYPE REF TO cl_salv_hierseq_level,

lo_column TYPE REF TO cl_salv_column_hierseq.

ls_color-col = 4.

ls_color-int = 1.

lo_columns = co_hs_alv->get_columns( level = 2 ).

lo_column ?= lo_columns->get_column( 'DOCNUM' ).

lo_column->set_color( ls_color ).

ENDMETHOD. "set_color

METHOD set_status.

co_hs_alv->set_screen_status( pfstatus = 'SALV_STANDARD'

report = sy-repid ).

ENDMETHOD. "set_status

METHOD set_events.

DATA: lo_events TYPE REF TO cl_salv_events_hierseq.

lo_events = go_hs_alv->get_event( ).

SET HANDLER on_link_click FOR lo_events.

SET HANDLER lcl_handle_events=>on_user_command FOR lo_events.

ENDMETHOD. "set_events

METHOD on_link_click.

DATA: ls_head LIKE LINE OF gt_head,

lv_idoc TYPE edi_docnum,

lv_vbeln TYPE vbeln,

ls_accounting TYPE wb2_bkpf.

CASE level.

WHEN 1.

READ TABLE gt_head INTO ls_head INDEX row.

CASE column.

WHEN 'BELNR'.

SET PARAMETER ID 'BLN' FIELD ls_head-belnr.

SET PARAMETER ID 'BUK' FIELD ls_head-bukrs.

SET PARAMETER ID 'GJR' FIELD ls_head-gjahr.

CALL TRANSACTION 'FB03' AND SKIP FIRST SCREEN.

WHEN 'DOCNUM'.

lv_idoc = ls_head-docnum.

IF lv_idoc IS NOT INITIAL.

SUBMIT idoc_tree_control WITH docnum = lv_idoc AND RETURN.

ENDIF.

WHEN 'PUR_ORDER'.

SELECT SINGLE vbak~vbeln INTO lv_vbeln

FROM vbak

INNER JOIN vbap ON vbak~vbeln = vbap~vbeln

WHERE bstnk = ls_head-pur_order AND vbap~abgru EQ ''.

SET PARAMETER ID 'AUN' FIELD lv_vbeln.

CALL TRANSACTION 'VA33' AND SKIP FIRST SCREEN.

WHEN OTHERS.

ENDCASE.

WHEN 2.

ENDCASE.

ENDMETHOD. "on_click

METHOD add_format_styles.

CALL METHOD set_expand

CHANGING

co_hs_alv = co_hs_alv.

CALL METHOD set_hotspots

CHANGING

co_hs_alv = co_hs_alv.

CALL METHOD set_selection_rule

CHANGING

co_hs_alv = co_hs_alv.

CALL METHOD set_layout

CHANGING

co_hs_alv = co_hs_alv.

CALL METHOD set_status

CHANGING

co_hs_alv = co_hs_alv.

CALL METHOD set_color

CHANGING

co_hs_alv = co_hs_alv.

set_icon( ).

set_events( ).

ENDMETHOD. "add_format_styles

METHOD set_selection_rule.

go_selections = co_hs_alv->get_selections( level = 1 ).

go_selections->set_selection_mode( if_salv_c_selection_mode=>single ).

ENDMETHOD. "set_selection_rule

METHOD set_hotspots.

TRY.

go_column ?= go_columns->get_column( 'BELNR' ).

go_column->set_cell_type( if_salv_c_cell_type=>hotspot ).

go_column->set_icon( if_salv_c_bool_sap=>true ).

CATCH cx_salv_not_found. "#EC NO_HANDLER

ENDTRY.

TRY.

go_column ?= go_columns->get_column( 'DOCNUM' ).

go_column->set_cell_type( if_salv_c_cell_type=>hotspot ).

go_column->set_icon( if_salv_c_bool_sap=>true ).

CATCH cx_salv_not_found. "#EC NO_HANDLER

ENDTRY.

TRY.

go_column ?= go_columns->get_column( 'PUR_ORDER' ).

go_column->set_cell_type( if_salv_c_cell_type=>hotspot ).

go_column->set_icon( if_salv_c_bool_sap=>true ).

CATCH cx_salv_not_found. "#EC NO_HANDLER

ENDTRY.

ENDMETHOD. "set_hotspots

METHOD set_layout.

DATA:lo_display_settings TYPE REF TO cl_salv_display_settings.

go_functions = go_hs_alv->get_functions( ).

go_functions->set_all( abap_true ).

go_layout = co_hs_alv->get_layout( ).

gs_key-report = sy-repid.

go_layout->set_key( gs_key ).

go_layout->set_save_restriction( if_salv_c_layout=>restrict_none ).

go_layout->set_initial_layout( 'DEFAULT' ).

TRY.

go_columns = go_hs_alv->get_columns( 2 ).

CATCH cx_salv_not_found.

ENDTRY.

go_columns->set_optimize( abap_true ).

TRY.

go_columns = co_hs_alv->get_columns( 1 ).

CATCH cx_salv_not_found.

ENDTRY.

go_columns->set_optimize( abap_true ).

"Get display_settings class object

lo_display_settings = go_hs_alv->get_display_settings( ).

"Set vertical line

lo_display_settings->set_vertical_lines( abap_true ).

"Set horizontal line

lo_display_settings->set_horizontal_lines( abap_true ).

ENDMETHOD. "set_layout

METHOD set_expand.

TRY.

go_columns = co_hs_alv->get_columns( 1 ).

CATCH cx_salv_not_found.

ENDTRY.

TRY.

go_columns->set_expand_column( 'EXPAND' ).

CATCH cx_salv_data_error. "#EC NO_HANDLER

ENDTRY.

TRY.

go_level = go_hs_alv->get_level( 1 ).

go_level->set_items_expanded( ).

CATCH cx_salv_not_found.

ENDTRY.

ENDMETHOD. "set_expand

ENDCLASS. "lcl_salv_formatter IMPLEMENTATION

Links

https://sapyard.com/alv-with-an-editable-row/

Search This Blog

Toolkit for SAP consultants
